OCAP Workflow: What to Do After an OOC Alarm

Author: MST Semiconductor | Category: Semiconductor Quality Management | Keywords: OCAP, OOC, Out of Control, Semiconductor Quality Management

1. What Is OCAP

OCAP is a pre-defined, standardized action plan that specifies the series of steps to be taken when an SPC (Statistical Process Control) system detects an out-of-control (OOC) condition. It is the “second half” of the SPC framework — SPC detects the problem, and OCAP resolves it.

A comprehensive OCAP system should answer the following questions:

• Who is responsible for responding to this alarm? (Responsible person)
• How quickly must the first response be made after the alarm? (Response time requirement)
• What potential causes should be checked? (Checklist)
• What corrective actions correspond to each cause? (Action plan)
• How is it confirmed that the issue has been resolved? (Recovery confirmation)
• How can recurrence of the same issue be prevented? (Improvement measures)

It can be said that half the value of an SPC system depends on the quality of the OCAP. Even the most sensitive SPC detection rules are just “crying wolf” if alarms are not followed by effective action — eventually, engineers become desensitized to alarms, and SPC becomes nothing more than a formality.

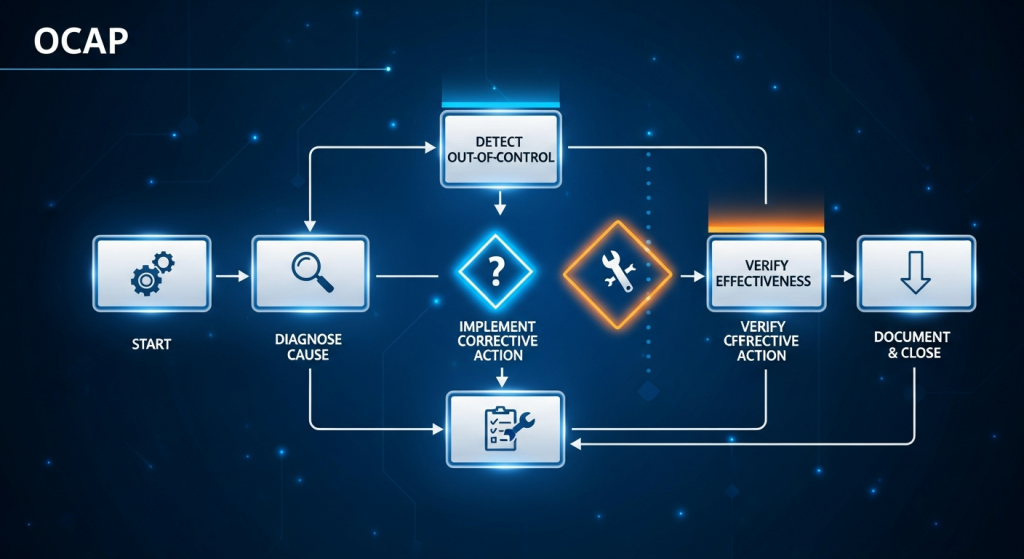

2. Standard OCAP Process: The Five-Step Closed Loop

A standard OCAP process can be divided into five steps:

2.1 Acknowledge

After an OOC alarm is triggered, the designated responsible person must acknowledge the alarm within a specified time frame (typically 15-30 minutes). The acknowledgment includes:

• Reviewing alarm details: which control chart, which parameter, and which rule was violated.
• Determining whether it is a false alarm: checking for measurement errors, data entry errors, etc.
• Preliminary severity assessment: deciding whether to immediately stop the tool and hold WIP (Work in Process).

The key to the acknowledgment step is speed. Many fabs stipulate that if an OOC alarm receives no response within 30 minutes, it is automatically escalated to a supervisor.

2.2 Classify

After confirming the alarm is valid, the anomaly must be classified:

• By pattern: Is it a single-point control limit violation, a continuous trend, or an abnormal pattern? Different patterns point toward different root cause directions.
• By severity: Is it a minor shift (may self-correct), a significant deviation (requires intervention), or a severe out-of-control (requires tool shutdown)?
• By scope of impact: Does it affect one parameter or multiple? One tool or multiple?

Classification accuracy directly determines the efficiency of subsequent actions. Inaccurate classification leads to overreaction (shutting down the tool only to find nothing wrong) or underreaction (continuing to run when the tool should have been stopped, causing yield loss).

2.3 Disposition

Based on the classification, the corresponding corrective actions are executed:

• Product disposition: Should the affected WIP continue processing, be reworked, or be scrapped? Downstream inspection is needed to assess the extent of impact.
• Equipment disposition: Should the tool continue operating, operate at reduced capacity, or be shut down for maintenance?
• Parameter adjustment: If the cause is clear (e.g., process drift), immediately adjust recipe parameters to restore normal operation.

2.4 Root Cause Analysis

Disposition is “firefighting”; root cause analysis is “fire prevention.” Standard root cause analysis includes:

• Timeline reconstruction: What changed before and after the OOC event? PM, recipe changes, material lot changes, equipment alarms?
• Data correlation analysis: Examining related sensor data and upstream/downstream process data to identify the source of the abnormal signal.
• Fishbone diagram analysis: Systematically investigating potential root causes across the five dimensions of Man, Machine, Material, Method, and Environment.
• Hypothesis verification: After formulating a root cause hypothesis, verifying its correctness through experiments or data analysis.

2.5 Improvement

After identifying the root cause, permanent corrective actions are developed and implemented:

• Update the OCAP documentation by incorporating the lessons learned into the checklist.
• Modify SPC rules (e.g., adjust control limits) to improve future detection sensitivity.
• Implement mistake-proofing measures (Poka-Yoke) to prevent recurrence at the source.
• Revise equipment maintenance schedules or process specifications as needed.

Among the five steps of the closed loop, the improvement step is the one most easily neglected — because “the fire is already out,” urgency dissipates, and engineers are drawn to the next problem. But without improvement, the same issues are bound to recur.

3. Three Major Problems with Traditional OCAP

Despite the seemingly clear OCAP workflow, traditional methods face serious challenges in actual execution:

3.1 Excessive Reliance on Experience

The core steps of OCAP — classification and root cause analysis — are highly dependent on individual engineer experience. Given the same OOC alarm, a senior engineer may pinpoint the cause in 5 minutes, while a junior engineer may struggle for an entire day. When fabs run three shifts, the night and holiday shifts are often staffed by less experienced engineers, significantly compromising OCAP quality.

3.2 Slow Response Time

From OOC alarm to root cause identification, traditional methods average 4-8 hours. During this time, the equipment may continue producing under abnormal conditions, generating significant quantities of defective product. Even if the tool is shut down to wait, the throughput loss is substantial — a single advanced-node tool can generate tens of thousands of dollars in throughput value per hour.

3.3 No Knowledge Accumulation

In most fabs, OCAP processing records are stored in standalone forms with inconsistent formats and no structured knowledge accumulation. The resolution experience for a similar problem three years ago is virtually impossible for today’s engineers to retrieve and leverage. Every OOC alarm effectively starts from scratch.

4. AI-Enhanced OCAP: Automatic Classification + Root Cause Recommendation + Knowledge Base

AI technology can systematically enhance the OCAP process at three levels:

4.1 Automatic Classification

An AI model trained on historical OOC data can automatically perform classification the instant an OOC alarm triggers:

• Identify the anomaly pattern (drift, step change, cyclical, random, etc.)
• Assess severity (based on deviation magnitude, duration, and scope of impact)
• Predict potential yield impact (based on historical correlations)
• Recommend whether a tool shutdown is necessary (comprehensive risk assessment)

Automatic classification reduces response time from “waiting for engineer judgment” to a matter of seconds, while eliminating inconsistency in human decision-making.

4.2 Root Cause Recommendation

When an OOC event occurs, the AI system automatically scans contextual information and generates a ranked list of root cause candidates:

• Change correlation: Automatically retrieves all change events within the alarm time window (recipe changes, PM, material changes) and ranks them by relevance.
• Historical matching: Searches the OCAP knowledge base for historical cases most similar to the current OOC pattern and recommends likely root causes.
• Sensor anomaly detection: Automatically analyzes time series data from all related sensors, flagging anomalous signals to assist in root cause localization.
• Cross-tool comparison: If the issue occurs on a single tool, the system compares it with normal data from similar tools to quickly narrow the investigation scope.

Root cause recommendation does not replace engineer judgment but provides a “starting line” — beginning the investigation with the system’s top 3 candidates rather than searching blindly. In practice, AI-recommended root cause candidates achieve a hit rate of 70-80%, significantly shortening investigation time.

4.3 Knowledge Base Accumulation

The complete information from every OCAP resolution — alarm characteristics, classification results, investigation process, confirmed root cause, corrective actions, improvement effectiveness — is stored in the knowledge base in a structured format. The AI system continuously learns from this data, steadily improving classification and recommendation accuracy.

The knowledge base’s value grows exponentially over time. In the first year, there may be only a few hundred cases with modest accuracy. After accumulating thousands of cases, the system can handle common issues nearly autonomously, leaving engineers to focus only on truly rare and novel problems.

5. From Reactive Firefighting to Proactive Prevention

The ultimate goal of AI-enhanced OCAP is to shift from “reactive firefighting” to “proactive prevention.” Once the knowledge base reaches a critical mass, AI can not only respond rapidly after an OOC event but also issue early warnings before OOC occurs — identifying trends that are still within control limits but moving toward anomalous territory, giving engineers a time window for intervention.

This is the highest level of OCAP: the best OCAP is not the one that responds the fastest, but the one that makes the number of alarms requiring action steadily decrease.
